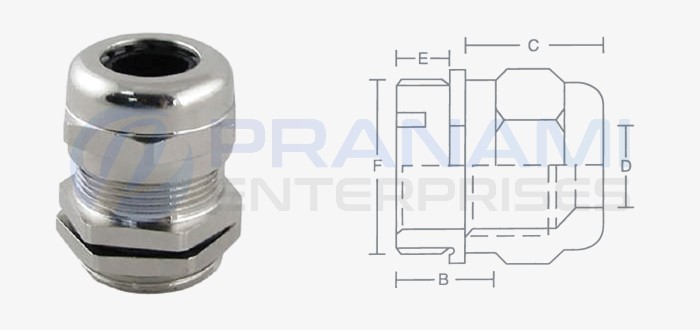

PG IP-68 Cable Glands
Technical Data
Size |
Clamping Rnge |
Thread Length |
|---|---|---|
PG 7 |
2 - 6.50 |
6.00 |
PG 9 |
3 - 8.00 |
6.00 |
PG 11 |
4 - 10.00 |
6.00 |
PG 13.5 |
5 - 12.00 |
8.00 |
PG 16 |
8 - 14.00 |
8.00 |
PG 21 |
11 - 18.00 |
8.00 |
PG 29 |
16 - 25.00 |
9.00 |
PG 36 |
20 - 30.00 |
9.00 |
PG 42 |
28 - 38.00 |
12.00 |
PG 48 |
34 - 44.00 |
12.00 |
M 12 |
2 - 6.50 |
6.00 |
M 16 |
3 - 8.00 |
6.00 |
M 20 |
5 - 12.00 |
8.00 |
M 25 |
11 - 18.00 |
8.00 |
M 32 |
12 - 21.00 |
8.00 |
M 40 |
18 - 27.00 |
9.00 |
M 50 |
27 - 33.00 |
9.00 |
M 63 |
34 - 48.00 |
12.00 |
Description
Application |
For outdoor or Indoor use with all types of unarmored marine electrical cable fittings. |
|---|---|
Function |
Provide Seal on outer sheath of the unarmored cable. |
Ingress Protection |
IP 68 |
Material |
Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements. |
Optional Threads |
Metric Threads and any special threads as per requirements. |
Finish & Plating |
Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required. |
Operating Temperature |
Standard seals -20° C To +80° C. |
Seals |
Neoprene / Nitrile |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. |
