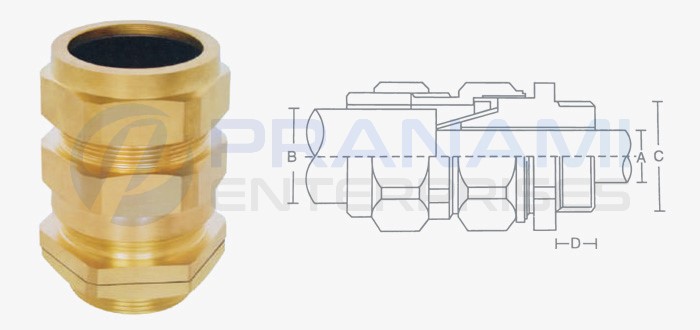

CW Cable Glands

Technical Data

Size
Thread Size 'C'
Minimum Length of Thread
Cable Range
MM
INCH
'D'
MAX 'A'
MAX 'B'
20S
20
3/4
10
11.80
17.80
20L
20
3/4
10
14.00
20.80
25S
25
1
10
18.00
24.00
25L
25
1
10
20.30
27.40
32S
32
1.1/4
10
24.50
31.00
32L
32
1.1/4
10
26.50
34.20
40S
40
1.1/2
13
30.40
38.50
40L
40
1.1/2
13
33.20
41.00
50S
50
2
13
40.00
47.00
50L
50
2
13
44.00
53.50
63S
63
2.1/2
14
50.00
59.00
63L
63
2.1/2
13.50
56.00
66.00
75S
75
3
15
63.50
73.00
75L
75
3
15
69.00
79.00

Description

Application
 For indoor or outdoor use with all types of SWA Cable.
Function
 Provide for environmental seal in the cable outer sheath. Also provide mechanical cable retention & electrical continuity.
Material
 Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads
 Metric, NPT, BSP.
Finish & Plating
 Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature
 Standard seals -20° C To +80° C.
Standard
 EN 50262 : 1999
Accessories
 Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, and Reducers Adaptors etc.
