PG IP-65 Cable Glands

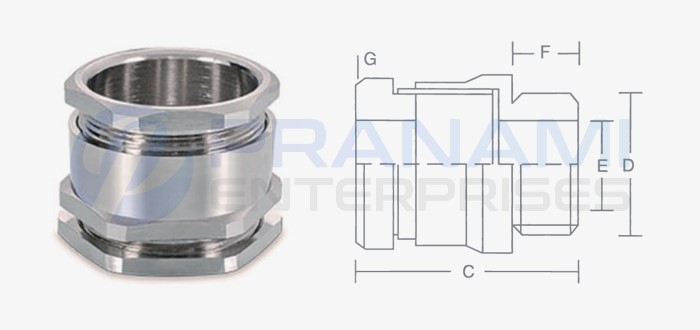

Technical Data

Size
A
B
C
D
E
F
G
PG-7
14.00
15.50
20.50
PG-7
10.00
5.00
15"
PG-9
18.00
20.00
23.50
PG-9
12.50
6.00
15"
PG-11
20.00
22.00
26.50
PG-11
15.00
6.50
15"
PG-13
23.00
25.00
27.00
PG-13
16.75
7.10
15"
PG-16
25.00
27.80
28.00
PG-16
18.50
6.50
15"
PG-21
31.00
34.00
31.00
PG-21
24.10
7.10
15"
PG-29
41.50
45.20
34.00
PG-29
32.10
8.50
15"
PG-36
51.00
56.50
40.00
PG-36
43.00
10.00
15"
PG-42
58.50
63.75
43.00
PG-42
47.50
10.00
15"
PG-48
64.00
70.50
47.00
PG-48
52.25
10.00
15"

Description

Application
 For outdoor or Indoor use with all types of unarmored marine electrical cable fittings.
Function
 Provide Seal on outer sheath of the unarmored cable.
Ingress Protection
 IP 65
Material
 Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads
 Metric Threads and any special threads as per requirements.
Finish & Plating
 Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature
 Standard seals -20° C To +80° C.
Standard
 EN 50262 : 1999
Seals
 Neoprene Material
Accessories
 Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc.
