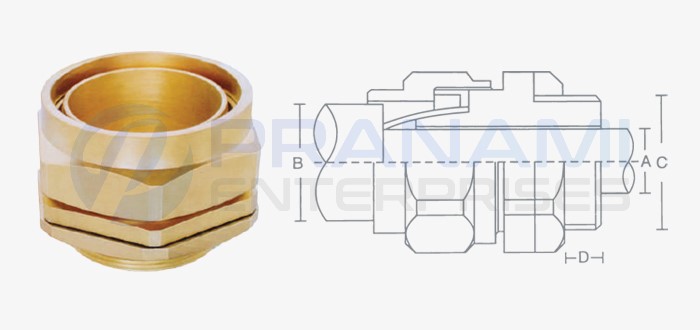

BW 4 Part Cable Glands

Size	Thread	Length	A	B	A/F	A/C
20S	M20	10.00	13.00	18.00	23.50	26.00
20L	M20	10.00	14.00	21.00	25.00	28.00
25S	M25	10.00	18.00	24.00	31.00	35.50
25L	M25	10.00	20.50	27.00	33.00	37.00
32S	M32	10.00	27.00	33.50	40.50	45.50
32L	M32	10.00	27.00	33.50	40.50	45.50
40S	M40	13.00	31.50	39.50	45.50	50.50
40L	M40	13.00	33.00	41.50	49.00	55.00
50S	M50	13.00	39.50	48.50	56.50	63.50
50L	M50	13.00	44.50	54.50	62.50	70.50
63S	M63	14.00	50.20	59.20	68.80	77.00
63L	M63	13.50	56.50	65.50	76.00	86.00
75S	M75	15.00	63.50	72.00	84.00	94.50
75L	M75	15.00	69.50	78.50	90.00	101.00
90S	M90	20.00	76.00	85.00	100.00	111.20
90L	M90	18.00	78.40	90.50	103.00	115.00

Application	For indoor use with all types of SWA Cable.
Function	Provide Mechanical Cable Retention & Electrical Wire Continuity Via Armored Wire.
Material	Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads	Metric, NPT, BSP.
Finish & Plating	Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature	Standard seals -20° C To +80° C.
Standard	BS 6121
Accessories	Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors etc.
