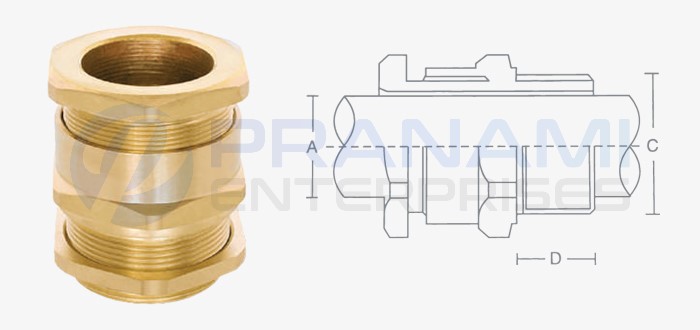

A1/A2 Cable Glands

Technical Data

Size
Thread Size 'C'
Minimum Length of Thread
Cable Range
MM
INCH
'D'
MAX 'A'
MAX 'B'
20S
20
3/4
15
10.80
8.80
20L
20
3/4
15
14.70
11.40
25S
25
1
15
16.00
13.00
25L
25
1
15
20.30
17.30
32S
32
1.1/4
15
23.00
20.00
32L
32
1.1/4
15
26.20
24.20
40S
40
1.1/2
20
29.00
26.00
40L
40
1.1/2
20
34.00
29.50
50S
50
2
20
41.00
33.00
50L
50
2
20
45.00
38.00
63S
63
2.1/2
20
51.50
44.00
63L
63
2.1/2
20
56.50
50.00
75S
75
3
20
63.20
56.00
75L
75
3
20
68.50
62.00

Description

Application
 For outdoor or indoor use with all types of unarmored cables.
Function
 Provide seal on outer sheath of the unarmored cables.
Material
 Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads
 Metric, NPT, BSP.
Finish & Plating
 Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature
 Standard seals -20° C To +80° C.
Standard
 EN 50262 : 1999
Accessories
 Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc.
