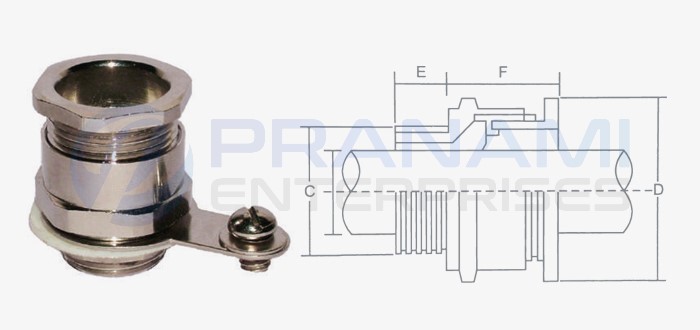

A2F Cable Glands

Technical Data

Size
Available Entry Threads
Thread
Length
Overall Cable Diameter
Across Flat
Across Corners
Weight
Standard Option
Metric
NPT
NPT
Min
Max
Max
Max
KG
20S/16
20
1/2"
3/4"
15
3.20
8.70
22
24.20
0.054
20S
20
1/2"
3/4"
15
6.10
11.70
22
24.20
0.054
20
20
1/2"
3/4"
15
6.50
14.00
27
29.70
0.059
25
25
3/4"
1"
15
11.10
20.00
36
39.60
0.112
32
32
1"
-1/4"
15
17.00
26.30
41
45.10
0.128
40
40
1-1/4"
1-1/2"
15
23.50
32.20
46
50.60
0.168
50S
50
1-1/2"
2"
15
31.00
38.20
55
60.50
0.224
50
50
2"
2-1/2"
15
35.60
44.10
60
66
0.231
63S
63
2"
2-1/2"
15
41.50
50.00
65
71
0.360
63
63
2-1/2"
3"
15
47.20
56.00
70
77
0.344
75S
75
2-1/2"
3"
15
54.00
62.00
80
88.70
0.466
75
75
3"
3-1/2"
15
61.10
68.00
84
92.40
0.395

Description

Application
 For outdoor or indoor use with all type of unarmored cables.
Material
 Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads
 Metric Threads or any special threads as per requirements.
Finish & Plating
 Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature
 Standard seals -20° C To +80° C.
Standard
 EN 50262 : 1999
Accessories
 Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, and Reducers Adaptors etc.
