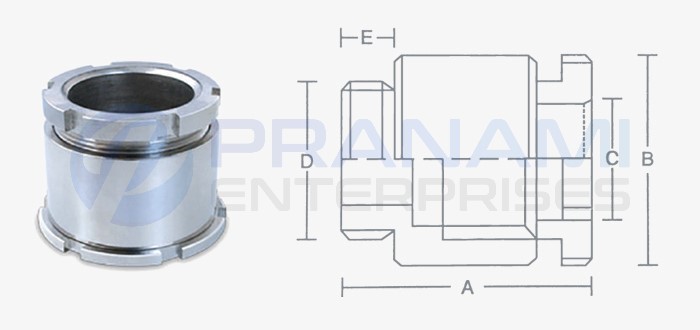

Marine & JIS Cable Glands

Technical Data

Size
A
B
C
D
E
F
G
H
I
10
45.00
21.50
10.00
3/8" BSP
11.00
5.00
28.00
22.00
4.00
15
50.00
27.50
15.00
1/2" HP
11.00
5.00
31.20
26.20
4.00
20
53.00
33.50
20.00
3/4" BSP
10.00
5.00
37.00
32.00
6.00
25
60.00
41.50
25.00
1" BSP
11.00
6.00
46.00
40.00
6.00
30
65.00
49.50
30.00
1.1/4" BSP
12.00
6.00
56.00
48.00
8.00
35
70.00
55.50
40.00
1.1/2" BSP
12.00
6.00
63.00
55.00
8.00
40
70.00
55.50
40.00
1.1/2" BSP
12.00
6.00
63.00
55.00
8.00
45
85.00
69.50
50.00
2" BSP
12.00
6.00
76.00
67.00
10.00
50
85.00
69.50
50.00
2" BSP
12.00
6.00
76.00
67.00
10.00
55
87.00
85.50
60.00
2.1/2" BSP
12.00
6.00
95.00
86.00
10.00
60
88.00
85.50
60.00
2.1/2" BSP
12.00
6.00
95.00
86.00
10.00
65
100.00
99.50
70.00
3" BSP
14.00
6.00
112.00
100.00
12.00
70
110.00
99.50
70.00
3" BSP
14.00
6.00
112.00
100.00
12.00

Description

Application
 For indoor or outdoor use with all types of SWA Cable.
Function
 Provide for environmental seal in the cable outer sheath. Also provide mechanical cable retention & electrical continuity.
Material
 Brass BS 2874 CZ121 Pb3, any special brass material composition as per customer's requirements.
Optional Threads
 Metric, NPT, BSP.
Finish & Plating
 Brass Natural, Nickel Plated, Chrome Plating, and any special plating as required.
Operating Temperature
 Standard seals -20° C To +80° C.
Standard
 EN 50262 : 1999
Accessories
 Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc.
