Cable Gland Accessories

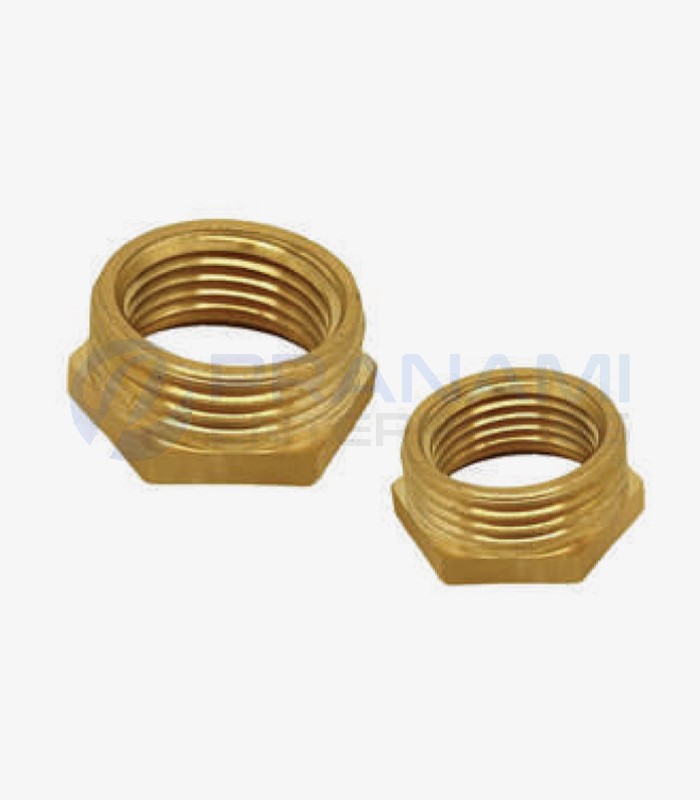

Brass Reducers

Application : Reducer allows a PG threaded gland to be terminated in enclosures with dierent entry thread form (ET NPT BSP BSPT)
Function : Reduce the entry thread diameter of enclosures
Material : Brass BS 2874 CZ121 Pb3
Threads : Metric (ISO), ET, NPT, BSP & BSPT
Finish And Plating : Natural Brass, Nickel, Chrome (CP), Zinc (ZP), Tin (TP)

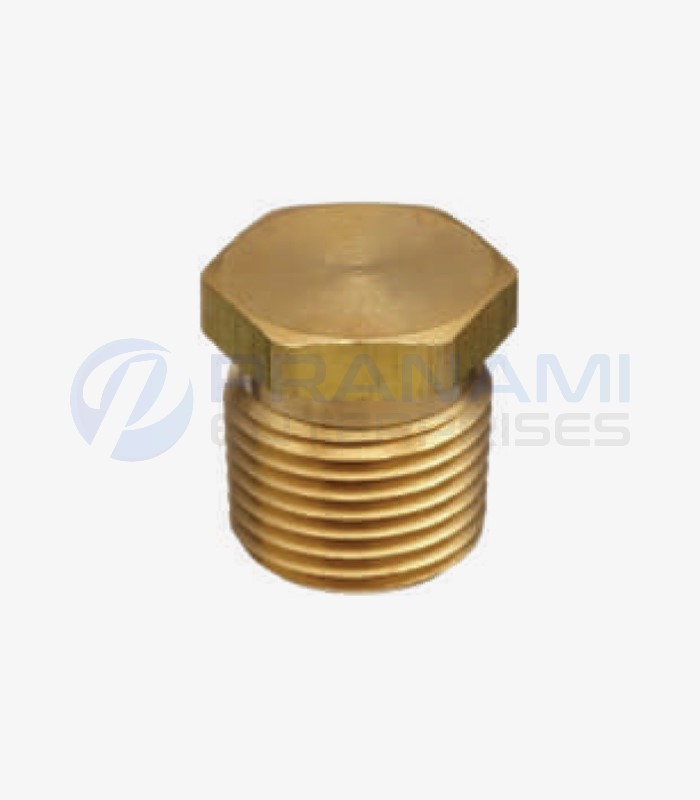

Brass Stop Plugs

Application : Stop Plug may be used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures.
Material : Brass Casting BS 2874 Aluminium Alloy & Galvanized Steel.
Ingress Protection : IP66 (with Nickel Thread Seal) IP68 (3 bar-with Nitrite 0 Rings).
Threads : ET, NPT, BSP, BSPT & PG
Finish And Plating : Natural Brass, Nickel, Chrome (CP), Zinc (ZP), Tin (TP).

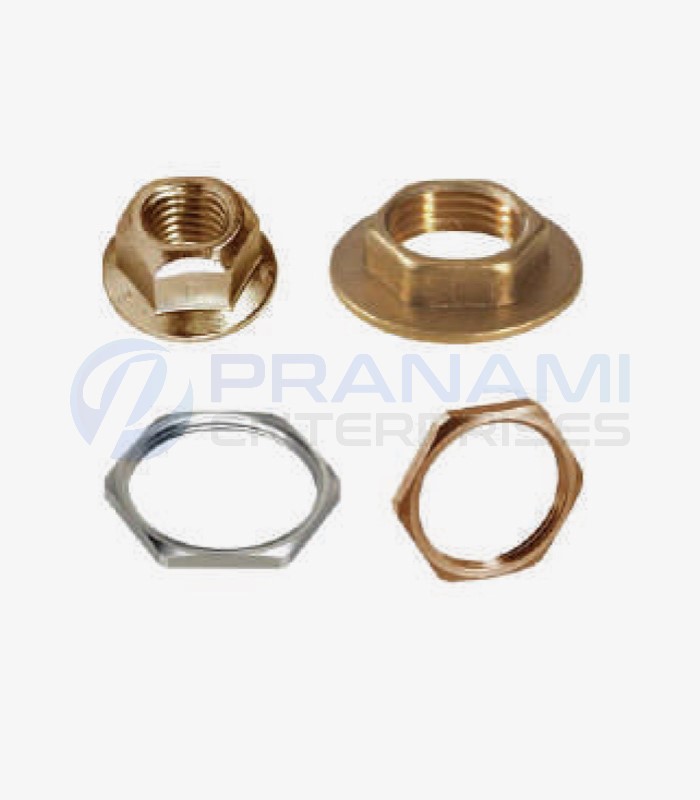

Brass Lock Nuts

Application : Brass Locknuts are traditional components used in fastening glands to the gland plate & as they are identical material to the gland, corrosion eects are minimal.
Function : Standard With ISO metric thread. To secure only brass cable glands to a gland plate.
Material : Brass BS 2874 CZ121 Pb3, Steel, Galvanized Aluminium Alloy (BS 1476).
Threads : ET, NPT, BSP, BSPT & PG.
Finish And Plating : Natural Brass, Nickel, Chrome (CP), Zinc (ZP), Tin (TP).

Brass Earth Tags

Application : Installed between the gland entry & equipment, provides an earth bond connection.
Function : Produces an earth bond connection for electrical continuity.
Material : Brass BS 2870 CZ123 Pb3.
Type : With Brass Screws & Washers, Plain Hole.
Shapes : Available in many shapes & thickness in all sizes.
Finish And Plating : Natural Brass, Nickel, Chrome (CP), Zinc (ZP), Tin (TP).

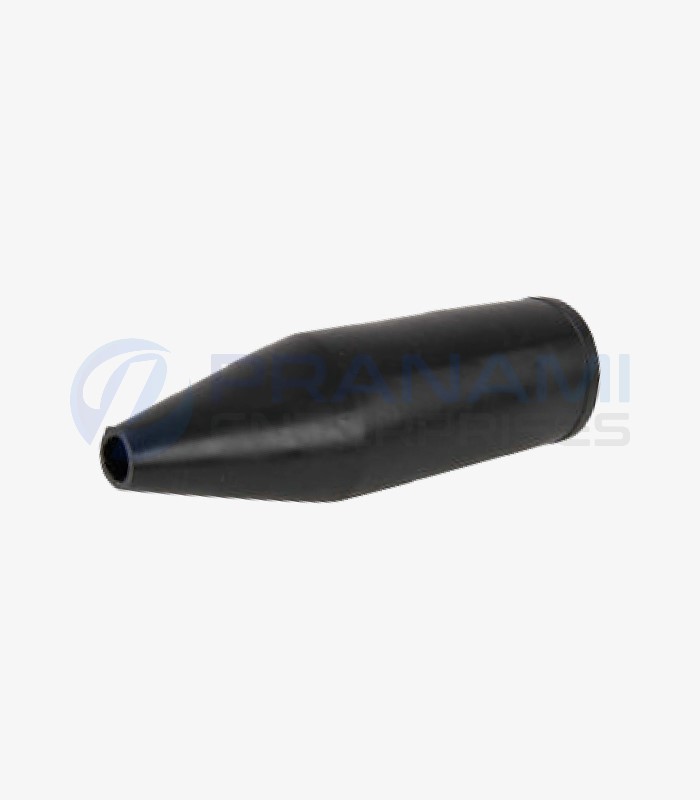

PVC Shrouds

Application : Push on shrouds which are used to minimize the risk of dirt or foreign substances gathering on the Cable Gland Body, and/or point of cable to a gland interface.
Function : For all types of gland applications to provide additional protection & enhances the IP rating of the gland termination.
Material : PVC DIP Moulded (Black).
Operating Temp : -20° C to +100° C for PVC DIP Moulded & -20° C to +80° C for Injection Moulded.

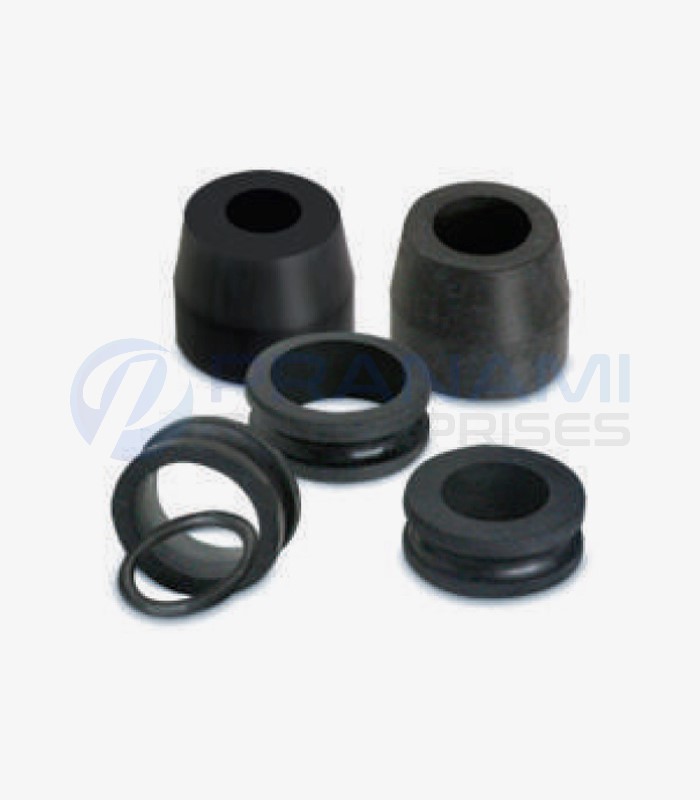

Seals & O Rings

Application : For maintaining the IP rating between equipment & cable glands it may be necessary to fit an entry thread sealing washer at the gland entry interface.
Material : Nitrile rubber & EPDM, PVC (Black), Silicon (Orange), Polyamide or Nylon (White), Red Fibre.
Note : Seals available for both external of & internal use.
